Coleman Mach 3 Plus EZ 13.5K BTU Air Conditioner - White - 02.2210

?Coleman Mach 3 Plus EZ 13.5K BTU Air Conditioner - White - 48203C866
?Coleman Mach 3 Plus EZ 13.5K BTU Air Conditioner - White - 48203C866
$707.29
$564.98 + Free Shipping!
Sale Prices Shown are Valid Until 07/26/19.


PRODUCT DESCRIPTION

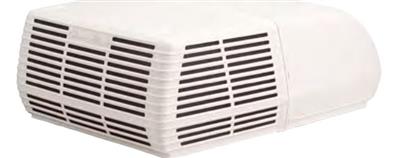

Coleman Mach 3 Plus EZ 13.5K BTU Air Conditioner - White

Item 02.2210 | MFR# 48203C866

The Coleman Mach 3 Plus is one of the best RV air conditioners available in the market. Offering unsurpassed cooling since 1967 with over 6 million units produced and counting. It has a 13,500 nominal BTU cooling capacity and features a large evaporator and condenser coils with raised lance fins to help dissipate heat. it's function is AC only. It gives indoor comfort for the great outdoors.


Benefits:

  • Two-speed fan for better control of air flow.
  • Easy installation into standard 14" roof vent.
  • Two year parts and labor warranty. You must send in your warranty card.
  • Operates on 115 Volts AC.
  • Full load of 15.3 amps for cooling, and 16 for heating(with heat strip installed)
  • Weighs 79.5 pounds.
  • Now charged with (Eco-friendly) R-410A

Ceiling Assembly Configurations:  Select the listed parts for your configuration from the list which follows:

Non-Ducted: Ceiling Assembly 72.0727, Electric Heat kit (Opt.) 67306

Non-Ducted w/Wall Thermostat:  Ceiling Assembly 65344, Electric Heat Kit (Opt.) 67306, Wall Thermostat 60277, Cool-Only Control Package 65346, heat-Cool Control Package 65345 plus 67306

Ducted:  Ceiling Assembly 63130 Cool Only OR 65192 Heat Ready, Electric Het Kit (Opt.) 67306, Wall Thermostat 60277, Manual Control Ceiling Assembly (No Thermostat) 64444

Ducted Park Models:  Ceiling Assembly 63126, Wall Thermostat 64680

 NOTE: You MUST purchase both an Upper Unit and a Ceiling Assembly for a complete system! These are sold as separate part numbers. Competing manufacturers assemblies are not interchangeable. For best resutls please call one of our parts representatives. Please have your a/c model number handy.

The Upper Units featured here are Manufacturer's designated replacements for certain Original Equipment installed by the coach manufacturer. They will not have solar panels or condensate pumps which may have been installed on the OEM units. If your model number is not found here, Click Here for a complete Cross-Reference List.


Features:
  • All-Copper tubing and gas flux brazed joints ensure durability and long life for your RV air conditioner.
  • Large evaporator and condenser cols with raised lance fins enhance the system's ability to dissipate heat.
  • Eco friendly
  • Limited 2 year warranty

Specifications:
  • Function: AC only
  • Color: White
  • Height: Medium Profile
  • Location: Roof Top
  • With Condensate Pump: No
  • Compatibility: Standard
  • BTU Level: 13,500 BTU
  • Voltage Rating: 120 Volt
  • Ampere Rating: 13.1 Amp
  • Evaporator Flow Rate: 320 Cubic Feet Per Minute
Note: This Part is a direct replacement of the Coleman 48203C966 (Part Number 63134)

FREQUENTLY BOUGHT TOGETHER
Deluxe Non-Ducted Coleman Ceiling Assembly - White - Heat Ready
Item #: 64521 | Manufacturer #: 9430D715
Product Details
$151.09
$58.99
Sale Prices Shown are Valid Until 07/26/19.
DELUXE COLEMAN CEILING ASSEMBLY - W/DOWN-VENTS - HEAT READY
Item #: 72.0727 | Manufacturer #: 9430D7153
Product Details
$141.45
$99.99
Sale Prices Shown are Valid Until 07/26/19.
COLEMAN DUCTED HEAT/COOL CONTROL KIT
Item #: 61359 | Manufacturer #: 9330C755
Product Details
$91.49
$89.99
Sale Prices Shown are Valid Until 07/26/19.
Electric Heat Kit For Coleman Ceiling Assembly
Item #: 67306 | Manufacturer #: 9233A4551
Product Details
$67.56
$39.99
Sale Prices Shown are Valid Until 07/26/19.
COLEMAN NON-DUCTED CEILING Assembly - NEED WALL T-STAT
Item #: 41.0013 | Manufacturer #: 9430-4552
Product Details
$94.31
Sale Prices Shown are Valid Until 07/26/19.
COLEMAN THERMOSTAT - 1 STAGE HEAT & COOL - WHITE
Item #: 60277 | Manufacturer #: 7330G3351
Product Details
$66.29
$49.99
Sale Prices Shown are Valid Until 07/26/19.
Coleman Mach Cool Only Control Package
Item #: 65346 | Manufacturer #: COOL CONTROL PACKAE
Product Details
$68.99
$63.33
Sale Prices Shown are Valid Until 07/26/19.
COLEMAN DUCTED CEILING ASSEMBLY - COOL ONLY - NO T-STAT
Item #: 63130 | Manufacturer #: 8330A733
Product Details
$143.93
$112.99
Sale Prices Shown are Valid Until 07/26/19.
Coleman Ducted Ceiling Assembly - Heat Ready - White
Item #: 65192 | Manufacturer #: 8330D735
Product Details
$143.08
Sale Prices Shown are Valid Until 07/26/19.
Manual Ducted Air Distribution Box Cool-White
Item #: 64444 | Manufacturer #: 8330-763
Product Details
$139.30
Sale Prices Shown are Valid Until 07/26/19.
Cool Only 24v Air Distribution Box - 8330A743
Item #: 63126 | Manufacturer #: 8330A743
Product Details
$151.49
$147.70
Sale Prices Shown are Valid Until 07/26/19.
Coleman Park Model Thermostat - 24v Standard - White
Item #: 64680 | Manufacturer #: 7330B3441
Product Details
$78.70
Sale Prices Shown are Valid Until 07/26/19.

More Details EXPAND

Product Cross-Sells
64521
72.0727
61359
67306
41.0013
60277
65346
63130
65192
64444
63126
64680
Popularity
65728
Related Products
02.2212
63140
B59516.XX1J0
Manufacturer Numbers
48203C866, 02-2210
Free Ground Shipping
Yes
Manufacturer
Coleman/Rvp
UPC List
755790121243
BTU Size
13500
Color
White
Mount
Rooftop
Profile
Standard
Voltage
120 Volt
Video Link
https://youtu.be/lS2GvVY5q7A
Features
  • All-Copper tubing and gas flux brazed joints ensure durability and long life for your RV air conditioner
  • Large evaporator and condenser cols with raised lance fins enhance the system's ability to dissipate heat
  • Eco friendly
  • Limited 2 year warranty
Specifications
  • Function: AC only
  • Color: White
  • Height: Medium Profile
  • Location: Roof Top
  • With Condensate Pump: No
  • Compatibility: Standard
  • BTU Level: 13,500 BTU
  • Voltage Rating: 120 Volt
  • Ampere Rating: 13.1 Amp
  • Evaporator Flow Rate: 320 Cubic Feet Per Minute
