Coleman Mach 8 Plus 15,000 BTU Air Conditioner with Heat Pump-Black - 08.0201
PRODUCT DESCRIPTION

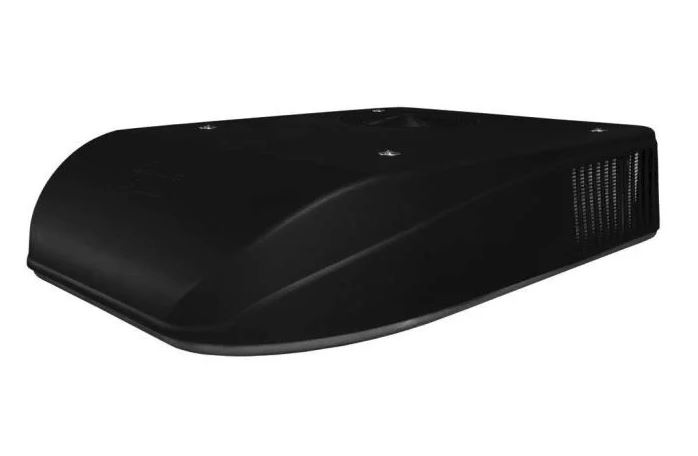

Coleman Mach 8 Plus 15,000 BTU Air Conditioner with Heat Pump-Black
The MACH 8 is now MACH 8 PLUS
The revolutionary new MACH 8 Plus Ultra Low-Profile Air Conditioners and heat pumps have the lowest aerodynamic profile of any rooftop units ever in the industry. The INDUSTRY EXCLUSIVE fiberglass base pan, provides superior strength and durability while reducing weight. The MACH 8 Plus outperforms all competitive models by delivering more cooling at a higher rate of airflow.
Multiple installation points are designed into the MACH 8 fiberglass base pan and are easily accessible. All attachments to the vehicle roof and all control box and thermostat wiring is done from the Top/Down resulting in a fast and easy installation that increases the system heating and cooling performance and significantly reduces operational and airflow noise. In-roof ducting is utilized for both return and supply airflows thus eliminating the interior ceiling air plenum. Ceiling aesthetics are greatly improved, and noise is greatly reduced resulting in true residential style performance and reliability.
View the Data Sheet here
View the Installation Instructions here
View more features of the Mach 8 Plus here

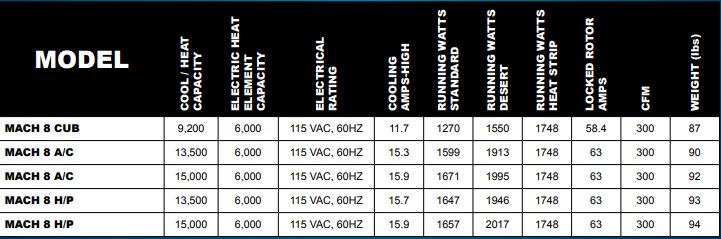

Features and Specs
- Cool/Heat Capacity: 15,000
- Electric Heat Element Capacity: 6,000
- Electrical Rating: 115 VAC, 60HZ
- Cooling Amps-High: 15.9
- Running Watts Standard: 1483
- Running Watts Desert: 1811
- Running Watts Heat Strip: 1748
- Locked Rotor Amps: 63
- CFM: 300
- Weight (Lbs.): 92
FREQUENTLY BOUGHT TOGETHER
Non-Ducted Coleman Ceiling Unit for Heat Pump Units - without Heat Strip
Ducted Heat Pump Ceiling Assembly
More Details
- Manufacturer Numbers
- 47004B879, 47004B679, 08-0201
- Freight Charge Residential
- 135
- Manufacturer
- Coleman/Rvp
- UPC List
- 755790120239
- Freight Charge Commercial
- 105
- Product Cross-Sells
-
64522
63148 - Application
-
Ducted
Non Ducted - BTU Size
- 15000
- Color
- Black
- Heat Pump?
- Yes
- Mount
- Rooftop
- Profile
- Low Gas
- Voltage
- 120 Volt
- Specifications
- Cool/Heat Capacity: 15,000
- Electric Heat Element Capacity: 6,000
- Electrical Rating: 115 VAC, 60HZ
- Cooling Amps-High: 15.9
- Running Watts Standard: 1483
- Running Watts Desert: 1811
- Running Watts Heat Strip: 1748
- Locked Rotor Amps: 63
- CFM: 300
- Weight (Lbs.): 92
