LOADED BALL MOUNT WITH 2-5/16" BALL (2" SHANK, 7,500 LBS., 6" DROP) - 18.8392

PRODUCT DESCRIPTION

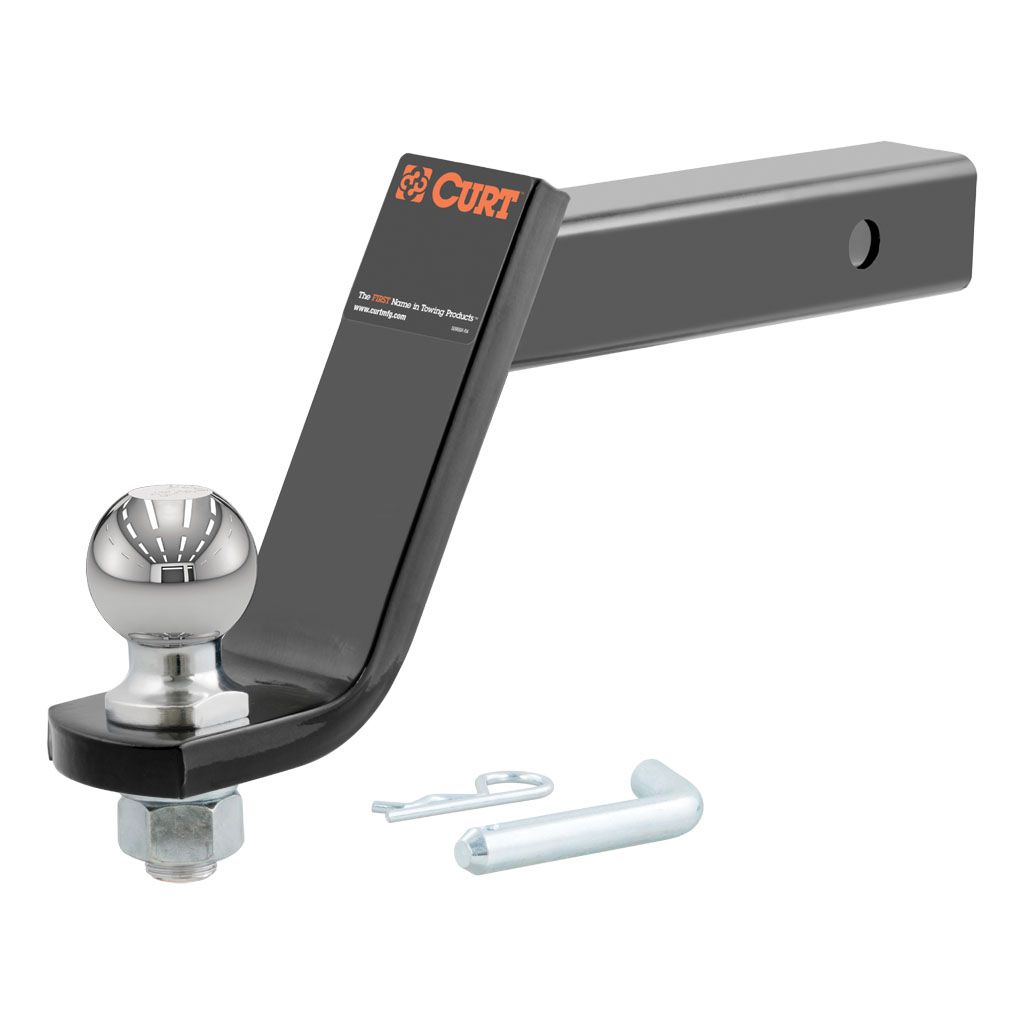

LOADED BALL MOUNT WITH 2-5/16" BALL (2" SHANK, 7,500 LBS., 6" DROP)

• When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers come with all necessary towing components and are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! Each one also comes with a pin and clip for mounting the ball mount into the appropriate size receiver tube. CURT offers loaded ball mounts in a variety of styles and weight ratings.

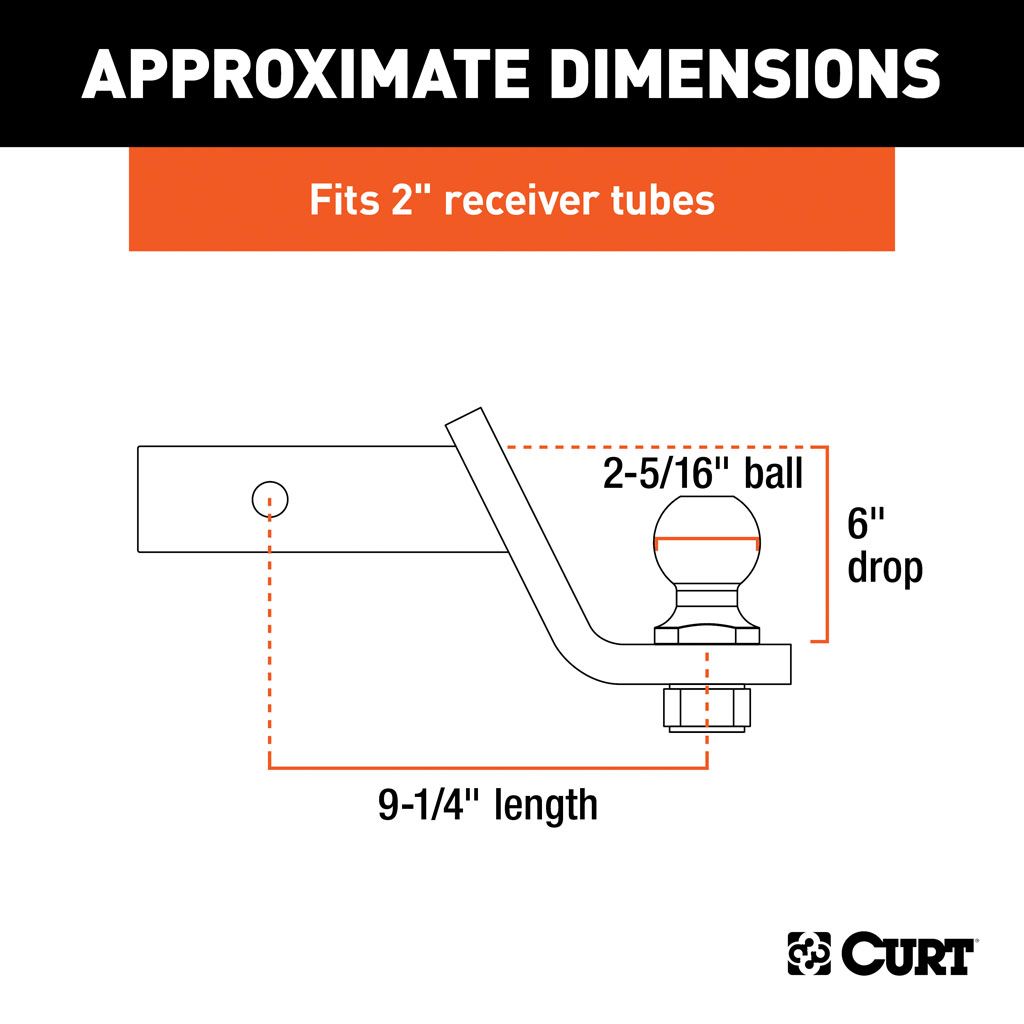

  This CURT loaded ball mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It comes with a 2-5/16" trailer ball, making it an excellent choice for towing most boat trailers, utility trailers, campers, livestock trailers and recreational vehicle trailers used for hauling dirt bikes, motorcycles and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a length of 9-1/4", a drop of 6" and comes with a gloss black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts feature 2" x 2" shanks and are made with the same superior quality we put into each of our products.

• Features:

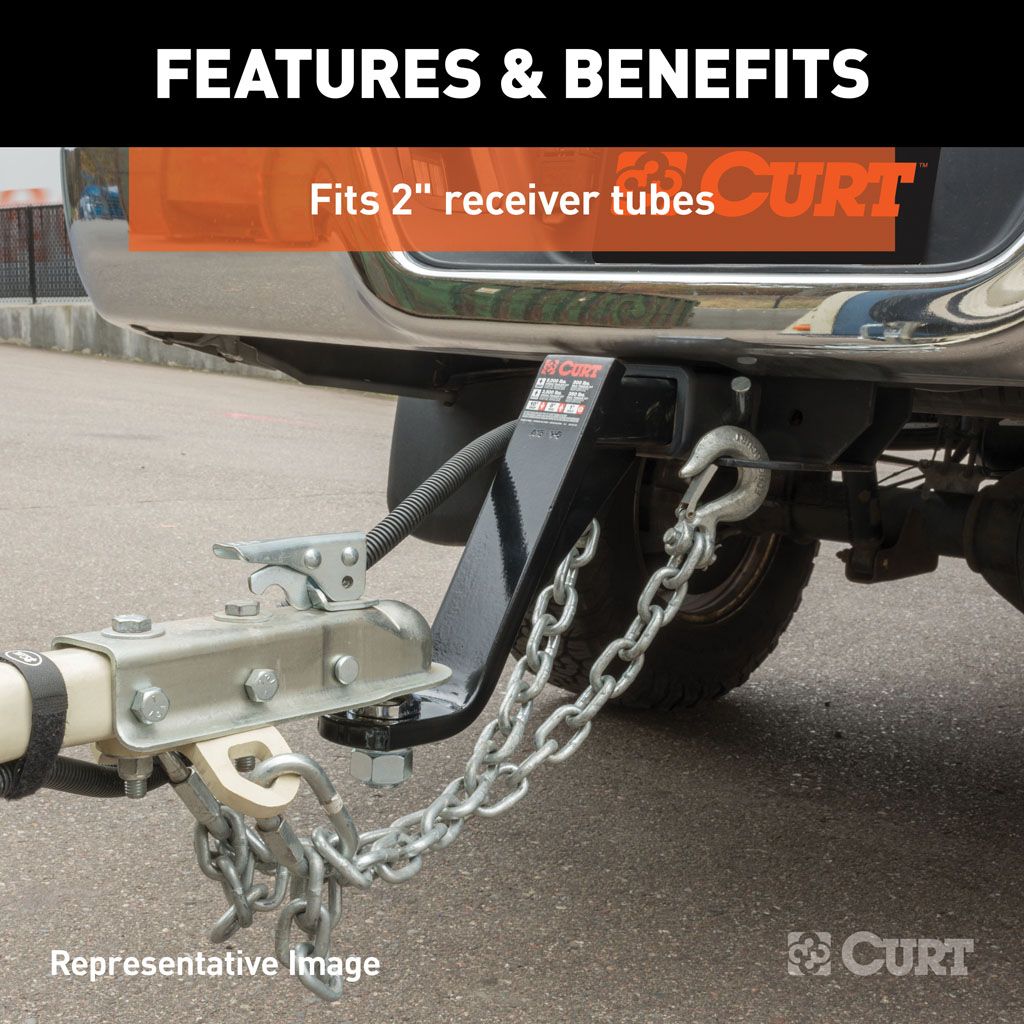

• Fits trailer hitches with a 2" x 2" receiver tube opening

  Factory-torqued CURT trailer ball accepts a 2-5/16" coupler

  6" drop for precise trailer leveling, particularly with larger trucks

  Hollow shank weighs less and can be used with an anti-rattle kit

  CNC-formed, robotically welded and mechanically descaled for a perfect fit

  Protected by a durable powder coat finish

  Trailer ball features a polished chrome-plated finish

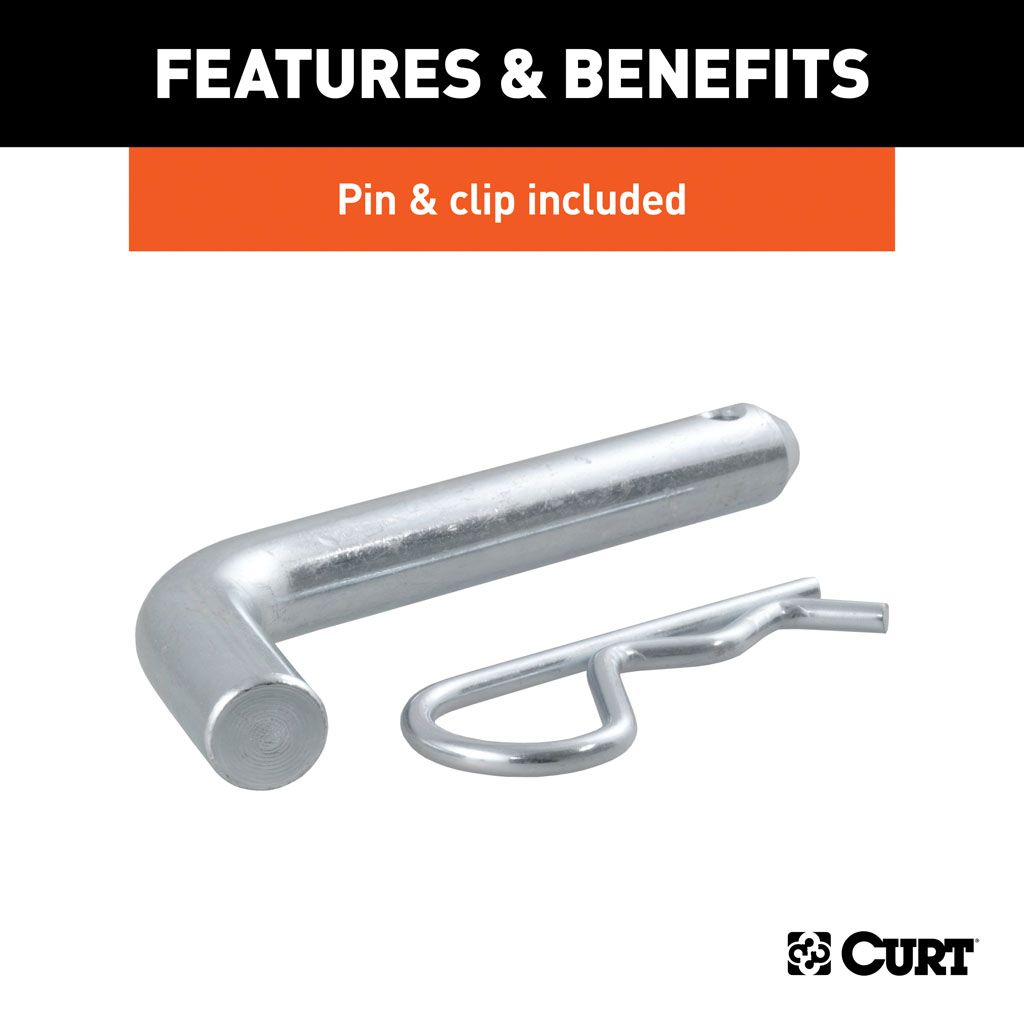

  5/8" hitch pin & clip for secure mounting in receiver tube

  Assembled in USA

  Limited lifetime warranty (one-year finish, one-year parts)

  Notes:

  Includes 2-5/16" trailer ball #40005, pin & clip

  • • PRODUCT SPECIFICATIONS

  • Mount Type DescriptionNot Applicable
  • Tongue Weight (TW)750 LB
  • MaterialCarbon Steel
  • FinishGLOSS BLACK POWDER COAT
  • Drop6 IN
  • Ball Diameter2-5/16 IN
  • Receiver Tube Size2 IN
  • WarrantyLimited Lifetime Warranty (One-Year Finish, One-Year Parts)
  • Gross Trailer Weight (GTW)7,500 LB
  • Installation Time Exact0
  • Side Application Type DescriptionNot Applicable
  • Shipping Weight12.000
  • HUB_USAD25

•
