The AXON 45-S SYNTHETIC WINCH with Spydura Synthetic Rope - 72.3276

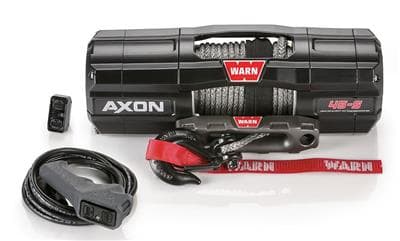

The AXON 45-S SYNTHETIC WINCH with Spydura Synthetic Rope Image 1
The AXON 45-S SYNTHETIC WINCH with Spydura Synthetic Rope Image 1
$939.90
Sale Prices Shown are Valid Until 05/03/24.


PRODUCT DESCRIPTION

The AXON 45-S SYNTHETIC WINCH with Spydura Synthetic Rope

Item 72.3276 | MFR# 101140

Pull a vehicle with power, using the AXON 45-S SYNTHETIC WINCH that offers reliable and smooth pulling capability at 4,500 lbs. capacity. Designed with an all-metal One-piece tie plate that's built to last and new digital technology that provides performance levels and user feedback, including temperature and load information so you can pull a vehicle with confidence.

Features:

  • AXON 45-S includes an Epic hawse fairlead, 50' of easy-to-handle, lightweight 1/4' Spydura synthetic rope, and a black hook
  • Innovative Motactor combines contactor and motor for easy installation and best performance
  • Powerful pulling capacity of 4,500 lbs. perfect for UTV Side x Sides
  • Digital control offers unique performance levels and user feedback that includes temperature and load info
  • Smooth, reliable three-stage all-metal planetary gear train
  • Stainless steel fasteners and black satin powder-coated finish for corrosion resistance
  • New clutch design that's based on renowned WARN 4WD hub lock know-how
  • One-piece tie plate and all-metal durable construction for increased structural rigidity
  • IP68 waterproofing to keep elements and water out
  • Load-holding brake for great control
  • Rockerbar digital wired remote and digital control switch
  • Limited lifetime (mechanical) warranty , 3 year (electrical) warranty

Specifications:

    -
  • Winch Model - Axon 45 S or Axon 45
    • -
  • Part numbers - 101140 (Axon 45-S), 101145 (Axon 45)
    • -
  • Rated line pull - 4500Lbs. (2041 kg) single-line
    • -
  • Motor - Motactor with 12V DC permanent magnet
    • -
  • Sealing - IP68 waterproof
    • -
  • Geartrain - 3-stage planetary
    • -
  • Fasteners - All stainless steel
    • -
  • Rope - AXON 45-S: 50' x 1/4' (15m x 6.3mm) Spydura synthetic, AXON 45: 50' x 1/4'(15 x 6.3mm) steel
    • -
  • Hook - Black powder coat
    • -
  • Fairlead - AXON 45-S: EPIC hawse fairlead, AXON 45: Roller
    • -
  • Primary control - Rockerbar digital control switch
    • -
  • Remote control - Digital corded remote
    • -
  • Brake - Mechanical brake
    • -
  • Mechanical Warranty - Limited lifetime
    • -
  • Electrical Warranty - 3 year

More Details EXPAND

Features
  • AXON 45-S includes an Epic hawse fairlead, 50' of easy-to-handle, lightweight 1/4' Spydura synthetic rope, and a black hook
  • Innovative Motactor combines contactor and motor for easy installation and best performance
  • Powerful pulling capacity of 4,500 lbs. perfect for UTV Side x Sides
  • Digital control offers unique performance levels and user feedback that includes temperature and load info
  • Smooth, reliable three-stage all-metal planetary gear train
  • Stainless steel fasteners and black satin powder-coated finish for corrosion resistance
  • New clutch design that's based on renowned WARN 4WD hub lock know-how
  • One-piece tie plate and all-metal durable construction for increased structural rigidity
  • IP68 waterproofing to keep elements and water out
  • Load-holding brake for great control
  • Rockerbar digital wired remote and digital control switch
  • Limited lifetime (mechanical) warranty , 3 year (electrical) warranty
Manufacturer Numbers
101140, 72-3276
Specifications
    -
  • Winch Model - Axon 45 S or Axon 45
    • -
  • Part numbers - 101140 (Axon 45-S), 101145 (Axon 45)
    • -
  • Rated line pull - 4500Lbs. (2041 kg) single-line
    • -
  • Motor - Motactor with 12V DC permanent magnet
    • -
  • Sealing - IP68 waterproof
    • -
  • Geartrain - 3-stage planetary
    • -
  • Fasteners - All stainless steel
    • -
  • Rope - AXON 45-S: 50' x 1/4' (15m x 6.3mm) Spydura synthetic, AXON 45: 50' x 1/4'(15 x 6.3mm) steel
    • -
  • Hook - Black powder coat
    • -
  • Fairlead - AXON 45-S: EPIC hawse fairlead, AXON 45: Roller
    • -
  • Primary control - Rockerbar digital control switch
    • -
  • Remote control - Digital corded remote
    • -
  • Brake - Mechanical brake
    • -
  • Mechanical Warranty - Limited lifetime
    • -
  • Electrical Warranty - 3 year
UPC List
0012748056041, 012748056041
